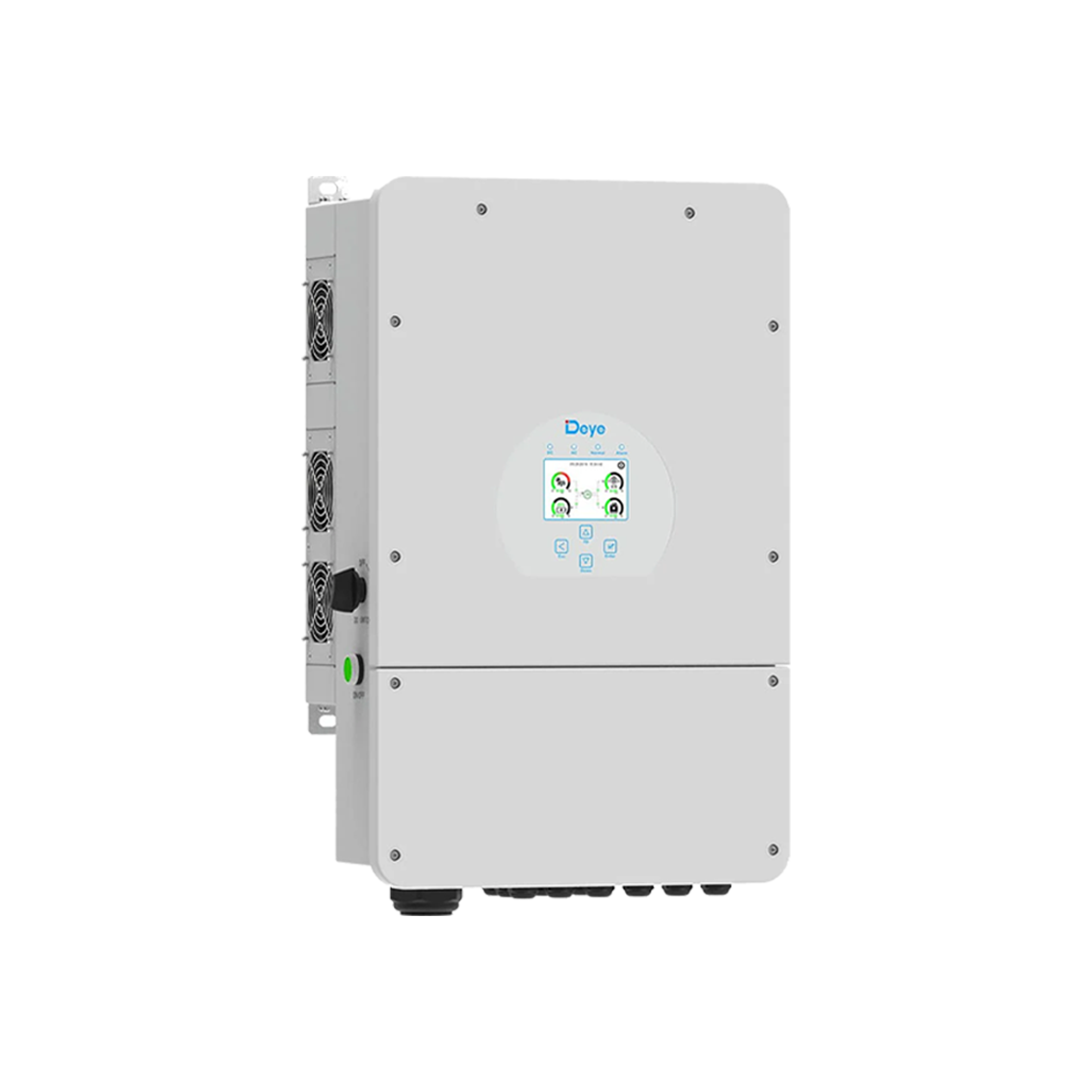

DEYE SUN-12KW INVERTER

The Deye SUN-12K-SG02LP1-EU-AM3 is a 12kW, single-phase low-voltage hybrid inverter designed for residential and commercial solar setups. It integrates solar, battery, grid, and generator inputs, and boasts a peak efficiency of 97.6% to ensure minimal energy conversion losses

Key Features & Technical Specifications

• Versatile Solar Tracking: Features 3 independent MPPT trackers (up to 2 strings each), allowing optimal energy harvest even on complex rooflines. It supports up to 18 kWp of PV power.
• High-Capacity Battery Support: Industry-leading 250A maximum charging and discharging current. It is compatible with 48V (low voltage) lithium-ion and lead-acid battery banks.
• Backup & Off-Grid Capability: Includes smart backup functionality that provides instant power in the event of grid failure, alongside support for integrating diesel generators.
• Scalable System: Capable of parallel connection (up to 16 units) for larger commercial demands and supports up to 16 batteries in parallel.
• Smart Energy Management: Allows programmable charging and discharging schedules (up to 6 time periods) to maximize self-consumption and lower electricity costs.

Hardware & Monitoring

• Intuitive Interface: Equipped with a colorful touch LCD screen for on-site configuration and live system parameter monitoring.
• IP65 Durability: Robust weather protection makes the device highly resistant to dust and water, suitable for both indoor and outdoor installations.
• Connectivity: Built-in Wi-Fi and smart ports (RS485/CAN) allow remote monitoring and direct communication with compatible battery management systems (BMS).
